Chapter 25 Joining Data in SQL

25.1 Inner Joins

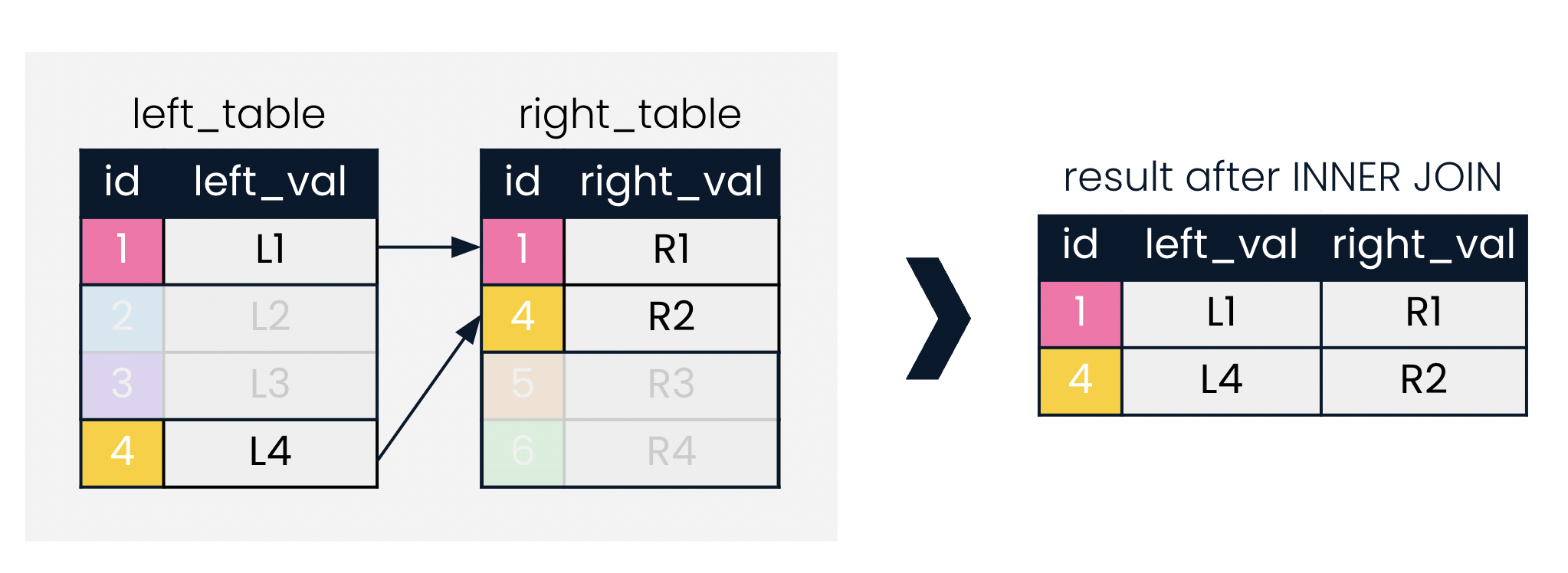

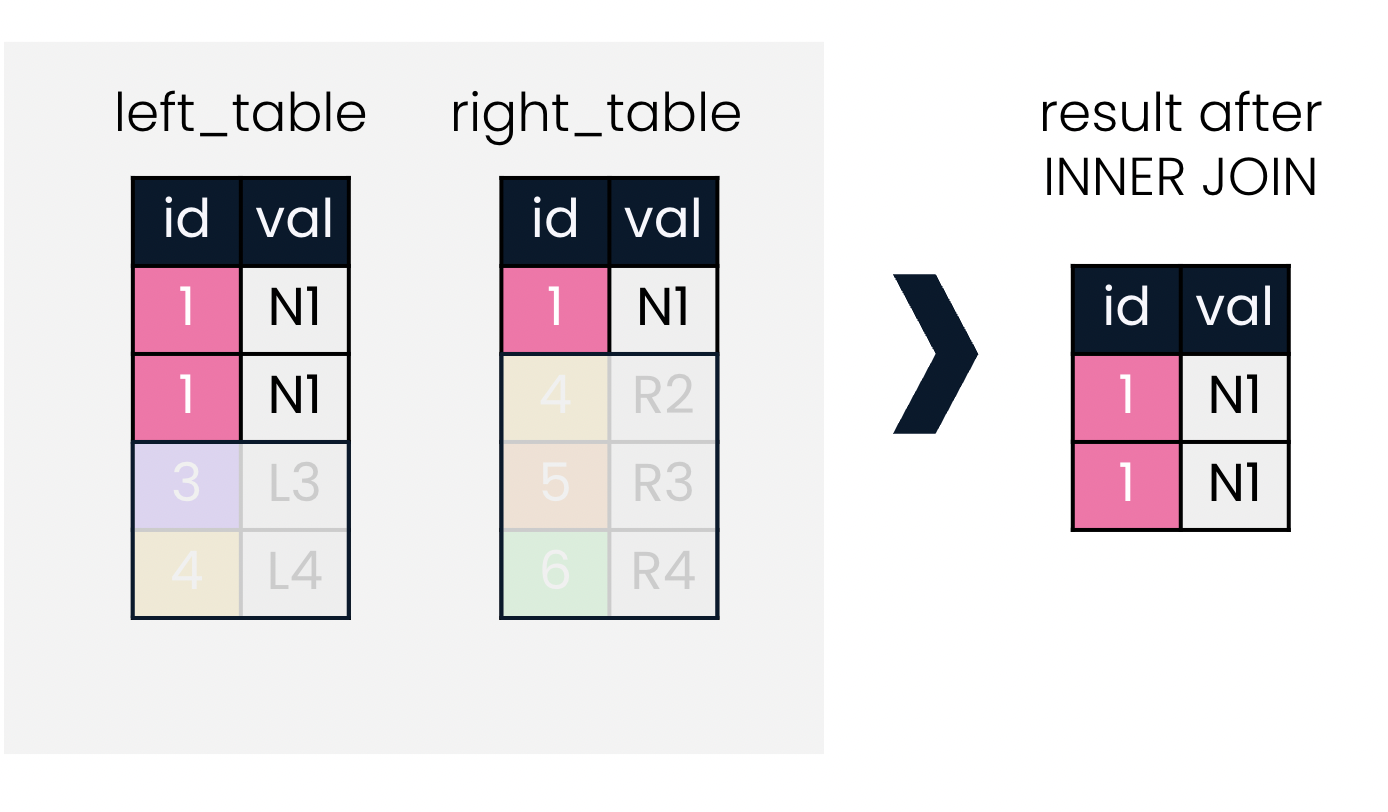

25.1.1 ins & outs of INNER JOIN

• The table.column_name format must be used when selecting columns that exist in both tables.

  -- Inner join of presidents and prime_ministers, joining on country
  SELECT prime_ministers.country, prime_ministers.continent, prime_minister, president
  FROM prime_ministers
  INNER JOIN presidents
  ON prime_ministers.country = presidents.country; 👈

• Aliasing tables, then can use in SELECT and ON clauses.

  --Inner join of presidents and prime_ministers, joining on country
  SELECT p1.country, p1.continent, prime_minister, president
  FROM prime_ministers AS p1   👈
  INNER JOIN presidents AS p2  👈
  ON p1.country = p2.country;

• USING: when joining on two identical column names, we can employ USING(shared_column_name)

  --Inner join of presidents and prime_ministers, joining on country
  SELECT p1.country, p1.continent, prime_minister, president
  FROM prime_ministers AS p1
  INNER JOIN presidents AS p2
  USING(country); 👈

Setup films database

# Creating a new database
# Connect to the default postgres database
library(DBI)
con <- dbConnect(RSQLite::SQLite(), "")
knitr::opts_chunk$set(connection = "con")

# List database tables
dbListTables(con)

## character(0)

-- Setup database schema, cities
CREATE TABLE cities (
  name                    VARCHAR   PRIMARY KEY,
  country_code            VARCHAR,
  city_proper_pop         REAL,
  metroarea_pop           REAL,
  urbanarea_pop           REAL
);

-- Setup database schema, countries
CREATE TABLE countries (
  code                  VARCHAR     PRIMARY KEY,
  name                  VARCHAR,
  continent             VARCHAR,
  region                VARCHAR,
  surface_area          REAL,
  indep_year            INTEGER,
  local_name            VARCHAR,
  gov_form              VARCHAR,
  capital               VARCHAR,
  cap_long              REAL,
  cap_lat               REAL
);

-- Setup database schema, languages
CREATE TABLE languages (
  lang_id               INTEGER     PRIMARY KEY,
  code                  VARCHAR,
  name                  VARCHAR,
  percent               REAL,
  official              BOOLEAN
);

-- Setup database schema, economies
CREATE TABLE economies (
  econ_id               INTEGER     PRIMARY KEY,
  code                  VARCHAR,
  year                  INTEGER,
  income_group          VARCHAR,
  gdp_percapita         REAL,
  gross_savings         REAL,
  inflation_rate        REAL,
  total_investment      REAL,
  unemployment_rate     REAL,
  exports               REAL,
  imports               REAL
);

-- Setup database schema, currencies
CREATE TABLE currencies (
  curr_id               INTEGER     PRIMARY KEY,
  code                  VARCHAR,
  basic_unit            VARCHAR,
  curr_code             VARCHAR,
  frac_unit             VARCHAR,
  frac_perbasic         REAL
);

-- Setup database schema, populations
CREATE TABLE populations (
  pop_id                INTEGER     PRIMARY KEY,
  country_code          VARCHAR,
  year                  INTEGER,
  fertility_rate        REAL,
  life_expectancy       REAL,
  size                  REAL
);

-- Setup database schema, economies2015
CREATE TABLE economies2015 (
  code                  VARCHAR     PRIMARY KEY,
  year                  INTEGER,
  income_group          VARCHAR,
  gross_savings         REAL
);

-- Setup database schema, economies2019
CREATE TABLE economies2019 (
  code                  VARCHAR     PRIMARY KEY,
  year                  INTEGER,
  income_group          VARCHAR,
  gross_savings         REAL
);

-- Setup database schema, eu_countries
CREATE TABLE eu_countries (
  code                  VARCHAR     PRIMARY KEY,
  name                  VARCHAR
);

# List database tables
dbListTables(con)

## [1] "cities"        "countries"     "currencies"    "economies"
## [5] "economies2015" "economies2019" "eu_countries"  "languages"
## [9] "populations"

# Loading data
cities <- read.csv("data/countries/countries/cities.csv", na.strings = "")
countries <- read.csv("data/countries/countries/countries.csv", na.strings = "")
currencies <- read.csv("data/countries/countries/currencies.csv", na.strings = "")
economies <- read.csv("data/countries/countries/economies.csv", na.strings = "")
economies2015 <- read.csv("data/countries/countries/economies2015.csv", na.strings = "")
economies2019 <- read.csv("data/countries/countries/economies2019.csv", na.strings = "")
eu_countries <- read.csv("data/countries/countries/eu_countries.csv", na.strings = "")
languages <- read.csv("data/countries/countries/languages.csv", na.strings = "")
populations <- read.csv("data/countries/countries/populations.csv", na.strings = "")

# Create database tables
dbWriteTable(con, "cities", cities, overwrite = TRUE)
dbWriteTable(con, "countries", countries, overwrite = TRUE)
dbWriteTable(con, "currencies", currencies, overwrite = TRUE)
dbWriteTable(con, "economies", economies, overwrite = TRUE)
dbWriteTable(con, "economies2015", economies2015, overwrite = TRUE)
dbWriteTable(con, "economies2019", economies2019, overwrite = TRUE)
dbWriteTable(con, "eu_countries", eu_countries, overwrite = TRUE)
dbWriteTable(con, "languages", languages, overwrite = TRUE)
dbWriteTable(con, "populations", populations, overwrite = TRUE)

# List database tables
dbListTables(con)

## [1] "cities"        "countries"     "currencies"    "economies"
## [5] "economies2015" "economies2019" "eu_countries"  "languages"
## [9] "populations"

25.1.1.1 INNER JOIN

You’ll be working with the countries database, which contains information about the most populous world cities in the world, along with country-level economic, population, and geographic data. The database also contains information on languages spoken in each country.

Use the cities and countries tables to build your first inner join.

-- Select all columns from cities
SELECT *
FROM cities;

Table 25.1: Displaying records 1 - 10

name	country_code	city_proper_pop	metroarea_pop	urbanarea_pop
Abidjan	CIV	4765000	NA	4765000
Abu Dhabi	ARE	1145000	NA	1145000
Abuja	NGA	1235880	6000000	1235880
Accra	GHA	2070463	4010054	2070463
Addis Ababa	ETH	3103673	4567857	3103673
Ahmedabad	IND	5570585	NA	5570585
Alexandria	EGY	4616625	NA	4616625
Algiers	DZA	3415811	5000000	3415811
Almaty	KAZ	1703481	NA	1703481
Ankara	TUR	5271000	4585000	5271000

Perform an inner join with the cities table on the left and the countries table on the right.

SELECT *
FROM cities
-- Inner join to countries
INNER JOIN countries
-- Match on country codes
ON cities.country_code = countries.code;

Table 25.2: Displaying records 1 - 10

name	country_code	city_proper_pop	metroarea_pop	urbanarea_pop	code	name	continent	region	surface_area	indep_year	local_name	gov_form	capital	cap_long	cap_lat
Abidjan	CIV	4765000	NA	4765000	CIV	Cote d’Ivoire	Africa	Western Africa	322463	1960	Cote d?Ivoire	Republic	Yamoussoukro	-4.030	5.33
Abu Dhabi	ARE	1145000	NA	1145000	ARE	United Arab Emirates	Asia	Middle East	83600	1971	Al-Imarat al-´Arabiya al-Muttahida	Emirate Federation	Abu Dhabi	54.370	24.48
Abuja	NGA	1235880	6000000	1235880	NGA	Nigeria	Africa	Western Africa	923768	1960	Nigeria	Federal Republic	Abuja	7.489	9.06
Accra	GHA	2070463	4010054	2070463	GHA	Ghana	Africa	Western Africa	238533	1957	Ghana	Republic	Accra	-0.208	5.57
Addis Ababa	ETH	3103673	4567857	3103673	ETH	Ethiopia	Africa	Eastern Africa	1104300	-1000	YeItyop´iya	Republic	Addis Ababa	38.747	9.02
Ahmedabad	IND	5570585	NA	5570585	IND	India	Asia	Southern and Central Asia	3287260	1947	Bharat/India	Federal Republic	New Delhi	77.225	28.64
Alexandria	EGY	4616625	NA	4616625	EGY	Egypt	Africa	Northern Africa	1001450	1922	Misr	Republic	Cairo	31.246	30.10
Algiers	DZA	3415811	5000000	3415811	DZA	Algeria	Africa	Northern Africa	2381740	1962	Al-Jaza?ir/Algerie	Republic	Algiers	3.051	36.74
Almaty	KAZ	1703481	NA	1703481	KAZ	Kazakhstan	Asia	Southern and Central Asia	2724900	1991	Qazaqstan	Republic	Astana	71.438	51.19
Ankara	TUR	5271000	4585000	5271000	TUR	Turkey	Asia	Middle East	774815	1923	Turkiye	Republic	Ankara	32.361	39.72

Keep only the name of the city, the name of the country, and the region the country is located in.

-- Select name fields (with alias) and region
SELECT
    cities.name AS city,
    countries.name AS country,
    countries.region
FROM cities
INNER JOIN countries
ON cities.country_code = countries.code;

Table 25.3: Displaying records 1 - 10

city	country	region
Abidjan	Cote d’Ivoire	Western Africa
Abu Dhabi	United Arab Emirates	Middle East
Abuja	Nigeria	Western Africa
Accra	Ghana	Western Africa
Addis Ababa	Ethiopia	Eastern Africa
Ahmedabad	India	Southern and Central Asia
Alexandria	Egypt	Northern Africa
Algiers	Algeria	Northern Africa
Almaty	Kazakhstan	Southern and Central Asia
Ankara	Turkey	Middle East

25.1.1.2 Joining with aliased tables

You’ll use data from both the countries and economies tables to examine the inflation rate in 2010 and 2015.

-- Select fields with aliases
SELECT
    c.code AS country_code,
    c.name,
    e.year,
    e.inflation_rate
FROM countries AS c
-- Join to economies (alias e)
INNER JOIN economies AS e
-- Match on code field using table aliases
ON c.code = e.code;

Table 25.4: Displaying records 1 - 10

country_code	name	year	inflation_rate
AFG	Afghanistan	2010	2.179
AFG	Afghanistan	2015	-1.549
NLD	Netherlands	2010	0.932
NLD	Netherlands	2015	0.220
ALB	Albania	2010	3.605
ALB	Albania	2015	1.896
DZA	Algeria	2010	3.913
DZA	Algeria	2015	4.784
AGO	Angola	2010	14.480
AGO	Angola	2015	10.287

Notice that only the code field is ambiguous, so it requires a table name or alias before it. All the other fields (name, year, and inflation_rate) do not occur in more than one table name, so do not require table names or aliasing in the SELECT statement.

25.1.1.3 USING

When both the field names being joined on are the same, you can take advantage of the USING clause.

SELECT c.name AS country, l.name AS language, official
FROM countries AS c
INNER JOIN languages AS l
-- Match using the code column
USING(code);

Table 25.5: Displaying records 1 - 10

country	language	official
Afghanistan	Dari	1
Afghanistan	Other	0
Afghanistan	Pashto	1
Afghanistan	Turkic	0
Netherlands	Dutch	1
Albania	Albanian	1
Albania	Greek	0
Albania	Other	0
Albania	unspecified	0
Algeria	Arabic	1

It looks like Afghanistan has multiple official and unofficial languages.

25.1.2 Defining relationships

One-to-many relationships

One-to-one relationships

Many-to-many relationships

25.1.2.1 Relationships in our database

1. What best describes the relationship between code in the countries table and country_code in the cities table?

   ANS: one-to-many

2. Which of these options best describes the relationship between the countries table and the languages table?

   ANS: many-to-many

25.1.2.2 Inspecting a relationship

You’ve just identified that the countries table has a many-to-many relationship with the languages table. That is, many languages can be spoken in a country, and a language can be spoken in many countries.

First, what is the best way to query all the different languages spoken in a country?

Second, how is this different from the best way to query all the countries that speak each language?

Recall that when writing joins, many users prefer to write SQL code out of order by writing the join first (along with any table aliases), and writing the SELECT statement at the end.

-- Select country and language names, aliased
SELECT c.name AS country, l.name AS language
-- From countries (aliased)
FROM countries AS c
-- Join to languages (aliased)
INNER JOIN languages AS l
-- Use code as the joining field with the USING keyword
USING(code)
ORDER BY country;

Table 25.6: Displaying records 1 - 10

country	language
Afghanistan	Dari
Afghanistan	Other
Afghanistan	Pashto
Afghanistan	Turkic
Albania	Albanian
Albania	Greek
Albania	Other
Albania	unspecified
Algeria	Arabic
Algeria	Berber or Tamazight

-- Rearrange SELECT statement, keeping aliases
SELECT l.name AS language, c.name AS country
FROM countries AS c
INNER JOIN languages AS l
USING(code)
-- Order the results by language
ORDER BY language;

Table 25.7: Displaying records 1 - 10

language	country
Afar	Djibouti
Afar	Eritrea
Afar	Ethiopia
Afrikaans	South Africa
Afrikaans	Namibia
Akyem	Ghana
Albanian	Albania
Albanian	Macedonia
Albanian	Switzerland
Alsatian	France

When we read SQL results, we expect the most important column to be on the far left, and it’s helpful if results are ordered by relevance to the question at hand.

By default, results are ordered by the column from the left table, but you can change this using ORDER BY.

25.1.3 Multiple joins

Chaining joins

SELECT *
FROM left_table
INNER JOIN right_table
ON left_table.id = right_table.id
INNER JOIN another_table
ON left/right_table.id = another_table.id;

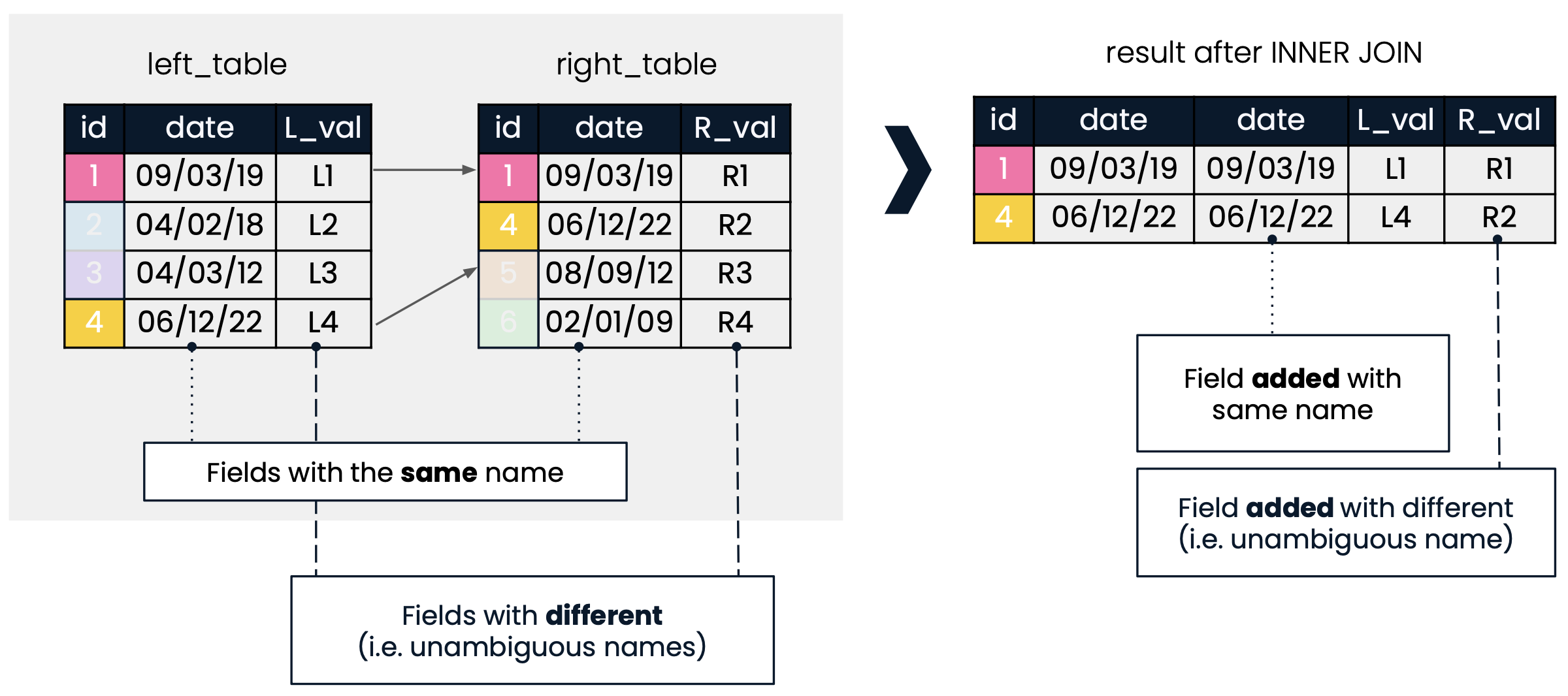

Joining on multiple keys

SELECT *
FROM left_table
INNER JOIN right_table
-- INNER JOIN ON the id AND date field
ON left_table.id = right_table.id
    AND left_table.date = right_table.date;

25.1.3.1 Joining multiple tables

Suppose you are interested in the relationship between fertility and unemployment rates. Your task in this exercise is to join tables to return the country name, year, fertility rate, and unemployment rate in a single result from the countries, populations and economies tables.

-- Select relevant fields
SELECT name, year, fertility_rate
-- Inner join countries and populations, aliased, on code
FROM countries AS c
INNER JOIN populations AS p
ON c.code = p.country_code;

Table 25.8: Displaying records 1 - 10

name	year	fertility_rate
Afghanistan	2010	5.75
Afghanistan	2015	4.65
Netherlands	2010	1.79
Netherlands	2015	1.71
Albania	2010	1.66
Albania	2015	1.79
Algeria	2010	2.87
Algeria	2015	2.81
American Samoa	2010	NA
American Samoa	2015	NA

Chain another inner join to your query with the economies table. Select name, and select year and unemployment_rate from economies.

-- Select fields
SELECT name, e.year, fertility_rate, e.unemployment_rate
FROM countries AS c
INNER JOIN populations AS p
ON c.code = p.country_code
-- Join to economies (as e)
INNER JOIN economies AS e
-- Match on country code
USING(code);

Table 25.9: Displaying records 1 - 10

name	year	fertility_rate	unemployment_rate
Afghanistan	2010	4.65	NA
Afghanistan	2015	4.65	NA
Afghanistan	2010	5.75	NA
Afghanistan	2015	5.75	NA
Netherlands	2010	1.71	5.00
Netherlands	2015	1.71	6.89
Netherlands	2010	1.79	5.00
Netherlands	2015	1.79	6.89
Albania	2010	1.66	14.00
Albania	2015	1.66	17.10

25.1.3.2 Checking multi-table joins

Have a look at the results for Albania from the previous query below. You can see that the 2015 fertility_rate has been paired with 2010 unemployment_rate, and vice versa.

SELECT name, e.year, fertility_rate, e.unemployment_rate
FROM countries AS c
INNER JOIN populations AS p
ON c.code = p.country_code
-- Join to economies (as e)
INNER JOIN economies AS e
-- Match on country code
USING(code)
WHERE name = 'Albania';

Table 25.10: 4 records

name	year	fertility_rate	unemployment_rate
Albania	2010	1.66	14.0
Albania	2015	1.66	17.1
Albania	2010	1.79	14.0
Albania	2015	1.79	17.1

Instead of four records, the query should return two: one for each year.

Fix the query by explicitly stating that both the country code and year should match!

SELECT name, e.year, fertility_rate, unemployment_rate
FROM countries AS c
INNER JOIN populations AS p
ON c.code = p.country_code
INNER JOIN economies AS e
ON c.code = e.code
-- Add an additional joining condition such that you are also joining on year
    AND p.year = e.year;

Table 25.11: Displaying records 1 - 10

name	year	fertility_rate	unemployment_rate
Afghanistan	2010	5.75	NA
Afghanistan	2015	4.65	NA
Netherlands	2010	1.79	5.00
Netherlands	2015	1.71	6.89
Albania	2010	1.66	14.00
Albania	2015	1.79	17.10
Algeria	2010	2.87	9.96
Algeria	2015	2.81	11.21
Angola	2010	6.42	NA
Angola	2015	6.00	NA

There are only two lines of Albania results now: one for 2010 and one for 2015.

25.2 Outer, Cross & Self Joins

25.2.1 LEFT & RIGHT JOINs

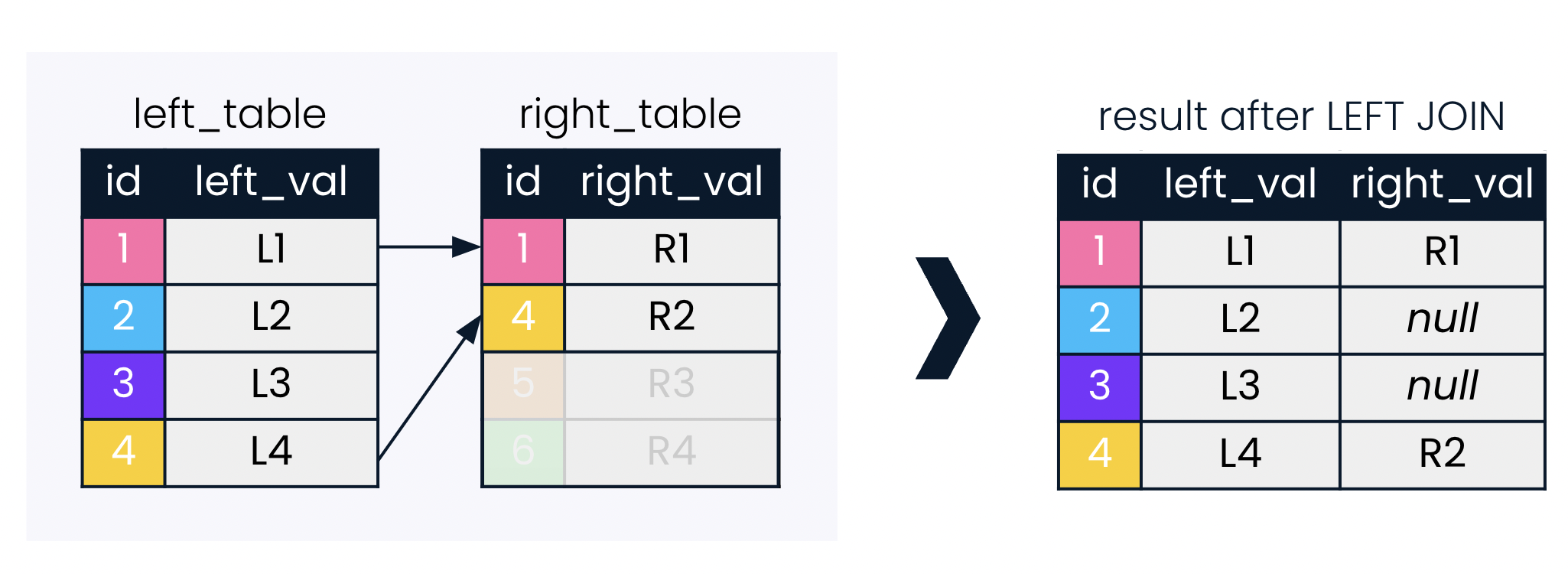

LEFT JOIN

• Return all records in the left table, and those records in the right table that match on the joining field provided.

• More intuitive to users when typing from left to right.

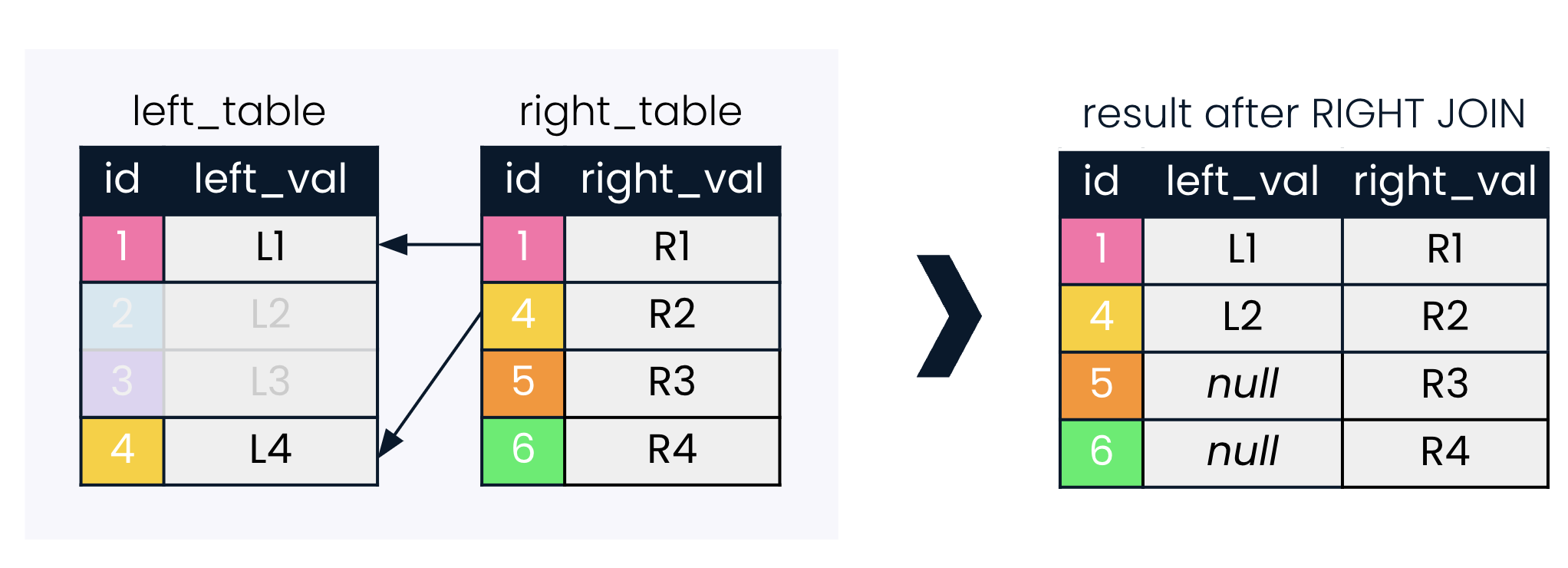

RIGHT JOIN

• Less commonly used than LEFT JOIN

• Any RIGHT JOIN can be re-written as a LEFT JOIN



25.2.1.1 LEFT JOIN

As before, you will be using the cities and countries tables.

You’ll begin with an INNER JOIN with the cities table (left) and countries table (right). This helps if you are interested only in records where a country is present in both tables.

You’ll then change to a LEFT JOIN. This helps if you’re interested in returning all countries in the cities table, whether or not they have a match in the countries table.

SELECT
    c1.name AS city,
    code,
    c2.name AS country,
    region,
    city_proper_pop
FROM cities AS c1
-- Perform an inner join with cities as c1 and countries as c2 on country code
INNER JOIN countries AS c2
ON c1.country_code = c2.code
ORDER BY code DESC;

Table 25.12: Displaying records 1 - 10

city	code	country	region	city_proper_pop
Harare	ZWE	Zimbabwe	Eastern Africa	1606000
Lusaka	ZMB	Zambia	Eastern Africa	1742979
Cape Town	ZAF	South Africa	Southern Africa	3740026
Durban	ZAF	South Africa	Southern Africa	3442361
Ekurhuleni	ZAF	South Africa	Southern Africa	3178470
Johannesburg	ZAF	South Africa	Southern Africa	4434827
Sana’a	YEM	Yemen	Middle East	1937451
Hanoi	VNM	Vietnam	Southeast Asia	6844100
Ho Chi Minh City	VNM	Vietnam	Southeast Asia	7681700
Caracas	VEN	Venezuela	South America	1943901

SELECT
    c1.name AS city,
    code,
    c2.name AS country,
    region,
    city_proper_pop
FROM cities AS c1
-- Join right table (with alias)
LEFT JOIN countries AS c2
ON c1.country_code = c2.code
ORDER BY code DESC;

Table 25.13: Displaying records 1 - 10

city	code	country	region	city_proper_pop
Harare	ZWE	Zimbabwe	Eastern Africa	1606000
Lusaka	ZMB	Zambia	Eastern Africa	1742979
Cape Town	ZAF	South Africa	Southern Africa	3740026
Durban	ZAF	South Africa	Southern Africa	3442361
Ekurhuleni	ZAF	South Africa	Southern Africa	3178470
Johannesburg	ZAF	South Africa	Southern Africa	4434827
Sana’a	YEM	Yemen	Middle East	1937451
Hanoi	VNM	Vietnam	Southeast Asia	6844100
Ho Chi Minh City	VNM	Vietnam	Southeast Asia	7681700
Caracas	VEN	Venezuela	South America	1943901

Notice that the INNER JOIN resulted in 230 records, whereas the LEFT JOIN returned 236 records.

Remember that the LEFT JOIN is a type of outer join: its result is not limited to only those records that have matches for both tables on the joining field.

Building on your LEFT JOIN

ou will use AVG() in combination with a LEFT JOIN to determine the average gross domestic product (GDP) per capita by region in 2010.

SELECT name, region, gdp_percapita
FROM countries AS c
LEFT JOIN economies AS e
-- Match on code fields
USING(code)
-- Filter for the year 2010
WHERE year = 2010;

Table 25.14: Displaying records 1 - 10

name	region	gdp_percapita
Afghanistan	Southern and Central Asia	540
Angola	Central Africa	3599
Albania	Southern Europe	4098
United Arab Emirates	Middle East	34629
Argentina	South America	10413
Armenia	Middle East	3122
Antigua and Barbuda	Caribbean	13532
Australia	Australia and New Zealand	56363
Austria	Western Europe	46757
Azerbaijan	Middle East	5847

-- Select region, and average gdp_percapita as avg_gdp
SELECT region, AVG(gdp_percapita) AS avg_gdp
FROM countries AS c
LEFT JOIN economies AS e
USING(code)
WHERE year = 2010
-- Group by region
GROUP BY region;

Table 25.15: Displaying records 1 - 10

region	avg_gdp
Australia and New Zealand	44792
Baltic Countries	12631
British Islands	43588
Caribbean	11413
Central Africa	4797
Central America	4970
Eastern Africa	1757
Eastern Asia	24963
Eastern Europe	10095
Melanesia	2533

SELECT region, AVG(gdp_percapita) AS avg_gdp
FROM countries AS c
LEFT JOIN economies AS e
USING(code)
WHERE year = 2010
GROUP BY region
-- Order by descending avg_gdp
ORDER BY avg_gdp DESC
-- Return only first 10 records
LIMIT 10;

Table 25.16: Displaying records 1 - 10

region	avg_gdp
Western Europe	58131
Nordic Countries	57074
North America	47912
Australia and New Zealand	44792
British Islands	43588
Eastern Asia	24963
Southern Europe	22926
Middle East	18205
Baltic Countries	12631
Caribbean	11413

25.2.1.2 RIGHT JOIN

-- Modify this query to use RIGHT JOIN instead of LEFT JOIN
SELECT countries.name AS country, languages.name AS language, percent
FROM languages
RIGHT JOIN countries
USING(code)
WHERE language IS NOT NULL
ORDER BY language;

Table 25.17: Displaying records 1 - 10

country	language	percent
Djibouti	Afar	NA
Eritrea	Afar	NA
Ethiopia	Afar	1.7
Namibia	Afrikaans	10.4
South Africa	Afrikaans	13.5
Ghana	Akyem	3.2
Albania	Albanian	98.8
Macedonia	Albanian	25.1
Switzerland	Albanian	3.0
France	Alsatian	NA

This is same as below left join.

-- Modify this query to use LEFT JOIN
SELECT countries.name AS country, languages.name AS language, percent
FROM countries
LEFT JOIN languages
USING(code)
WHERE language IS NOT NULL
ORDER BY language;

Table 25.18: Displaying records 1 - 10

country	language	percent
Djibouti	Afar	NA
Eritrea	Afar	NA
Ethiopia	Afar	1.7
Namibia	Afrikaans	10.4
South Africa	Afrikaans	13.5
Ghana	Akyem	3.2
Albania	Albanian	98.8
Macedonia	Albanian	25.1
Switzerland	Albanian	3.0
France	Alsatian	NA

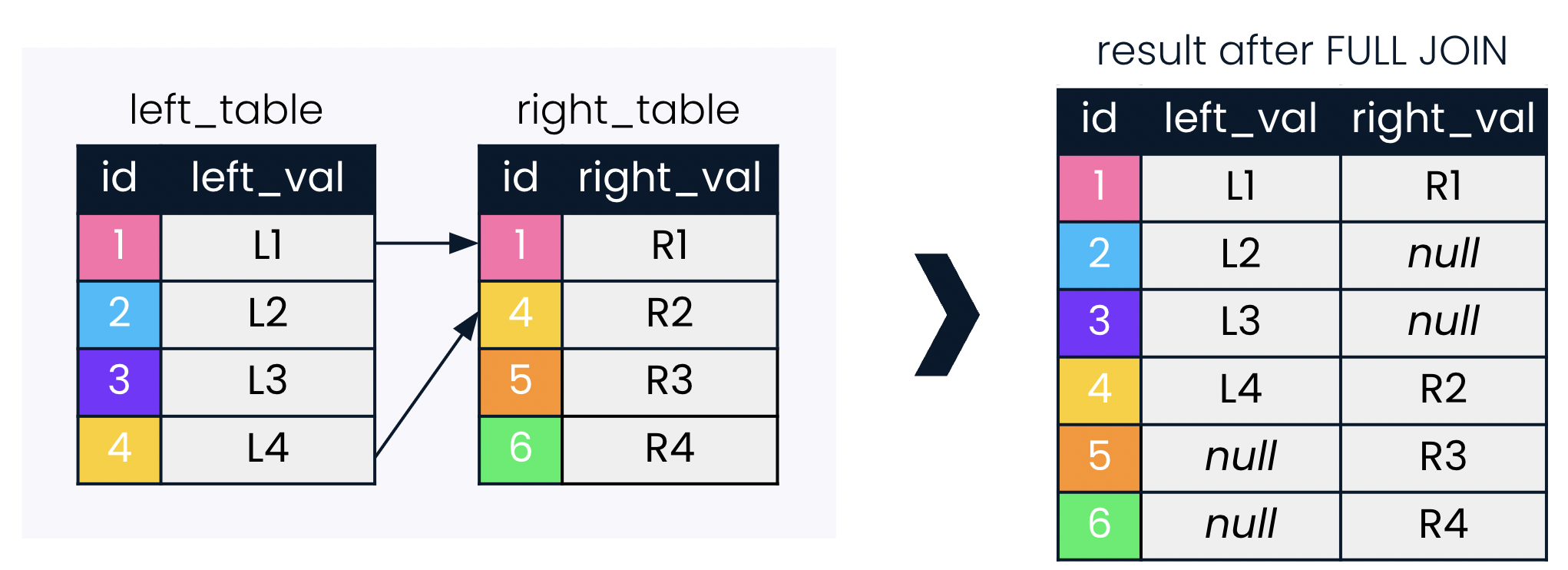

25.2.2 FULL JOIN

FULL JOIN

• A FULL JOIN combines a LEFT JOIN and a RIGHT JOIN.



25.2.2.1 Comparing joins

You’ll examine how results can differ when performing a full join compared to a left join and inner join by joining the countries and currencies tables. You’ll be focusing on the North American region and records where the name of the country is missing.

Begin with a full join with countries on the left and currencies on the right.

Then complete a similar left join and conclude with an inner join, observing the results you see along the way.

FUll JOIN

SELECT name AS country, code, region, basic_unit
FROM countries
-- Join to currencies
FULL JOIN currencies
USING (code)
-- Where region is North America or name is null
WHERE (region = 'North America')
    OR (name IS NULL)
ORDER BY region DESC;

Table 25.19: Displaying records 1 - 10

country	code	region	basic_unit
Bermuda	BMU	North America	Bermudian dollar
Greenland	GRL	North America	NA
Canada	CAN	North America	Canadian dollar
United States	USA	North America	United States dollar
NA	AIA	NA	East Caribbean dollar
NA	IOT	NA	United States dollar
NA	CCK	NA	Australian dollar
NA	COK	NA	New Zealand dollar
NA	TMP	NA	United States dollar
NA	FLK	NA	Falkland Islands pound

LEFT JOIN

SELECT name AS country, code, region, basic_unit
FROM countries
-- Join to currencies
LEFT JOIN currencies
USING (code)
WHERE region = 'North America'
    OR name IS NULL
ORDER BY region;

Table 25.20: 4 records

country	code	region	basic_unit
Bermuda	BMU	North America	Bermudian dollar
Greenland	GRL	North America	NA
Canada	CAN	North America	Canadian dollar
United States	USA	North America	United States dollar

INNER JOIN

SELECT name AS country, code, region, basic_unit
FROM countries
-- Join to currencies
INNER JOIN currencies
USING (code)
WHERE region = 'North America'
    OR name IS NULL
ORDER BY region;

Table 25.21: 3 records

country	code	region	basic_unit
Bermuda	BMU	North America	Bermudian dollar
Canada	CAN	North America	Canadian dollar
United States	USA	North America	United States dollar

The FULL JOIN query returned 18 records, the LEFT JOIN returned 4 records, and the INNER JOIN only returned 3 records.

25.2.2.2 Chaining FULL JOINs

uppose you are doing some research on Melanesia and Micronesia, and are interested in pulling information about languages and currencies into the data we see for these regions in the countries table. Since languages and currencies exist in separate tables, this will require two consecutive full joins involving the countries, languages and currencies tables.

SELECT
    c1.name AS country,
    region,
    l.name AS language,
    basic_unit,
    frac_unit
FROM countries as c1
-- Full join with languages (alias as l)
FULL JOIN languages AS l
USING(code)
-- Full join with currencies (alias as c2)
FULL JOIN currencies AS c2
USING(code)
WHERE region LIKE 'M%esia';

Table 25.22: Displaying records 1 - 10

country	region	language	basic_unit	frac_unit
Fiji Islands	Melanesia	NA	NA	NA
Guam	Micronesia	English	NA	NA
Guam	Micronesia	Filipino	NA	NA
Guam	Micronesia	Chamorro	NA	NA
Guam	Micronesia	Other Pacific Islander	NA	NA
Guam	Micronesia	Asian	NA	NA
Guam	Micronesia	Other	NA	NA
Kiribati	Micronesia	Kiribati	Australian dollar	Cent
Kiribati	Micronesia	English	Australian dollar	Cent
Marshall Islands	Micronesia	Marshallese	United States dollar	Cent

The first FULL JOIN in the query pulled countries and languages, and the second FULL JOIN added in currency data for each record in the result of the first FULL JOIN.

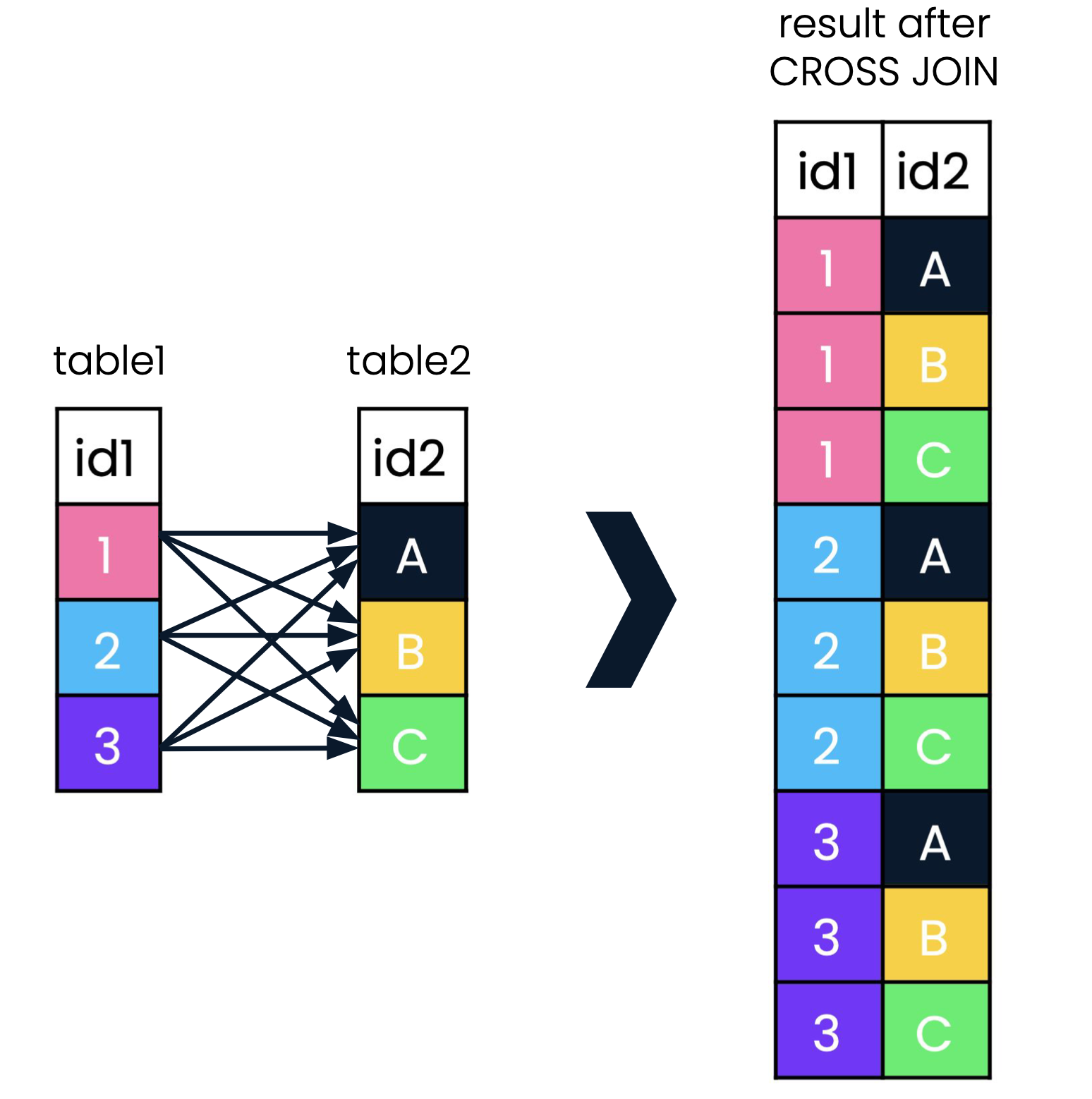

25.2.3 CROSS JOIN

• creates all possible combinations of two tables.



SELECT id1, id2
FROM table1
CROSS JOIN table2;

Histories and languages

CROSS JOIN can be incredibly helpful when asking questions that involve looking at all possible combinations or pairings between two sets of data.

Imagine you are a researcher interested in the languages spoken in two countries: Pakistan and India. You are interested in asking:

1. What are the languages presently spoken in the two countries?

2. Given the shared history between the two countries, what languages could potentially have been spoken in either country over the course of their history?

Explore how INNER JOIN and CROSS JOIN can help answer these two questions, respectively.

SELECT c.name AS country, l.name AS language
-- Inner join countries as c with languages as l on code
FROM countries AS c
INNER JOIN languages AS l
USING(code)
WHERE c.code IN ('PAK','IND')
    AND l.code in ('PAK','IND');

Table 25.23: Displaying records 1 - 10

country	language
India	Assamese
India	Bengali
India	Gujarati
India	Hindi
India	Kannada
India	Maithili
India	Malayalam
India	Marathi
India	Oriya
India	Other

Look at possible combinations of languages that could have been spoken in the two countries given their history.

SELECT c.name AS country, l.name AS language
FROM countries AS c
-- Perform a cross join to languages (alias as l)
CROSS JOIN languages AS l
WHERE c.code in ('PAK','IND')
    AND l.code in ('PAK','IND');

Table 25.24: Displaying records 1 - 10

country	language
India	Hindi
India	Bengali
India	Telugu
India	Marathi
India	Tamil
India	Urdu
India	Gujarati
India	Kannada
India	Malayalam
India	Oriya

Notice that the INNER JOIN returned 25 records, whereas the CROSS JOIN returned 50 records, as it took all combinations of languages returned by the INNER JOIN for both countries. (25*2=50)

Choosing your join

Determine the names of the five countries and their respective regions with the lowest life expectancy for the year 2010.

SELECT
    c.name AS country,
    region,
    life_expectancy AS life_exp
FROM countries AS c
-- Join to populations (alias as p) using an appropriate join
FULL JOIN populations AS p
ON c.code = p.country_code
-- Filter for only results in the year 2010
WHERE year = 2010 AND life_exp IS NOT NULL
-- Sort by life_exp
ORDER BY life_exp
-- Limit to five records
LIMIT 5;

Table 25.25: 5 records

country	region	life_exp
Lesotho	Southern Africa	47.5
Central African Republic	Central Africa	47.6
Sierra Leone	Western Africa	48.2
Swaziland	Southern Africa	48.3
Zimbabwe	Eastern Africa	49.6

Notice that all four types of joins we have learned will return the same result.

25.2.4 Self joins

• Self joins are tables joined with themselves

• They can be used to compare parts of the same table

Comparing a country to itself

Suppose you are interested in finding out how much the populations for each country changed from 2010 to 2015. You can visualize this change by performing a self join.

Since you’ll be joining the populations table to itself, you can alias populations first as p1 and again as p2. This is good practice whenever you are aliasing tables with the same first letter.

-- Select aliased fields from populations as p1
SELECT
  p1.country_code,
  p1.size AS size2010,
  p2.size AS size2015
FROM populations AS p1
-- Join populations as p1 to itself, alias as p2, on country code
INNER JOIN populations AS p2
ON p1.country_code = p2.country_code

Table 25.26: Displaying records 1 - 10

country_code	size2010	size2015
ABW	101597	101597
ABW	101597	103889
ABW	103889	101597
ABW	103889	103889
AFG	27962207	27962207
AFG	27962207	32526562
AFG	32526562	27962207
AFG	32526562	32526562
AGO	21219954	21219954
AGO	21219954	25021974

Since you want to compare records from 2010 and 2015, eliminate unwanted records by extending the WHERE statement to include only records where the p1.year matches p2.year - 5.

SELECT
    p1.country_code,
    p1.size AS size2010,
    p2.size AS size2015
FROM populations AS p1
INNER JOIN populations AS p2
ON p1.country_code = p2.country_code
WHERE p1.year = 2010
-- Filter such that p1.year is always five years before p2.year
    AND (p2.year = 2015);

Table 25.27: Displaying records 1 - 10

country_code	size2010	size2015
ABW	101597	103889
AFG	27962207	32526562
AGO	21219954	25021974
ALB	2913021	2889167
AND	84419	70473
ARE	8329453	9156963
ARG	41222875	43416755
ARM	2963496	3017712
ASM	55636	55538
ATG	87233	91818

All joins on deck

25.3 Set Theory for SQL Joins

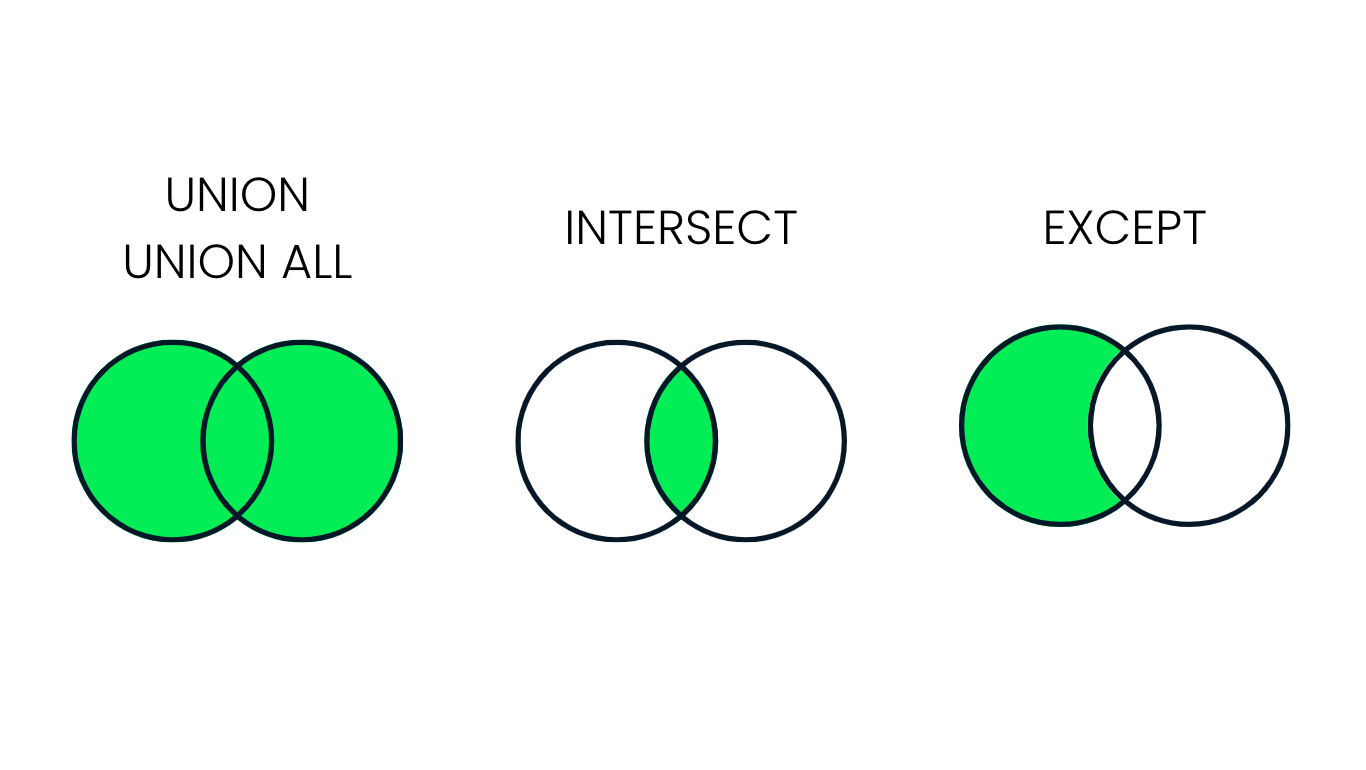

Venn diagrams and set theory

25.3.1 UNION vs. UNION ALL

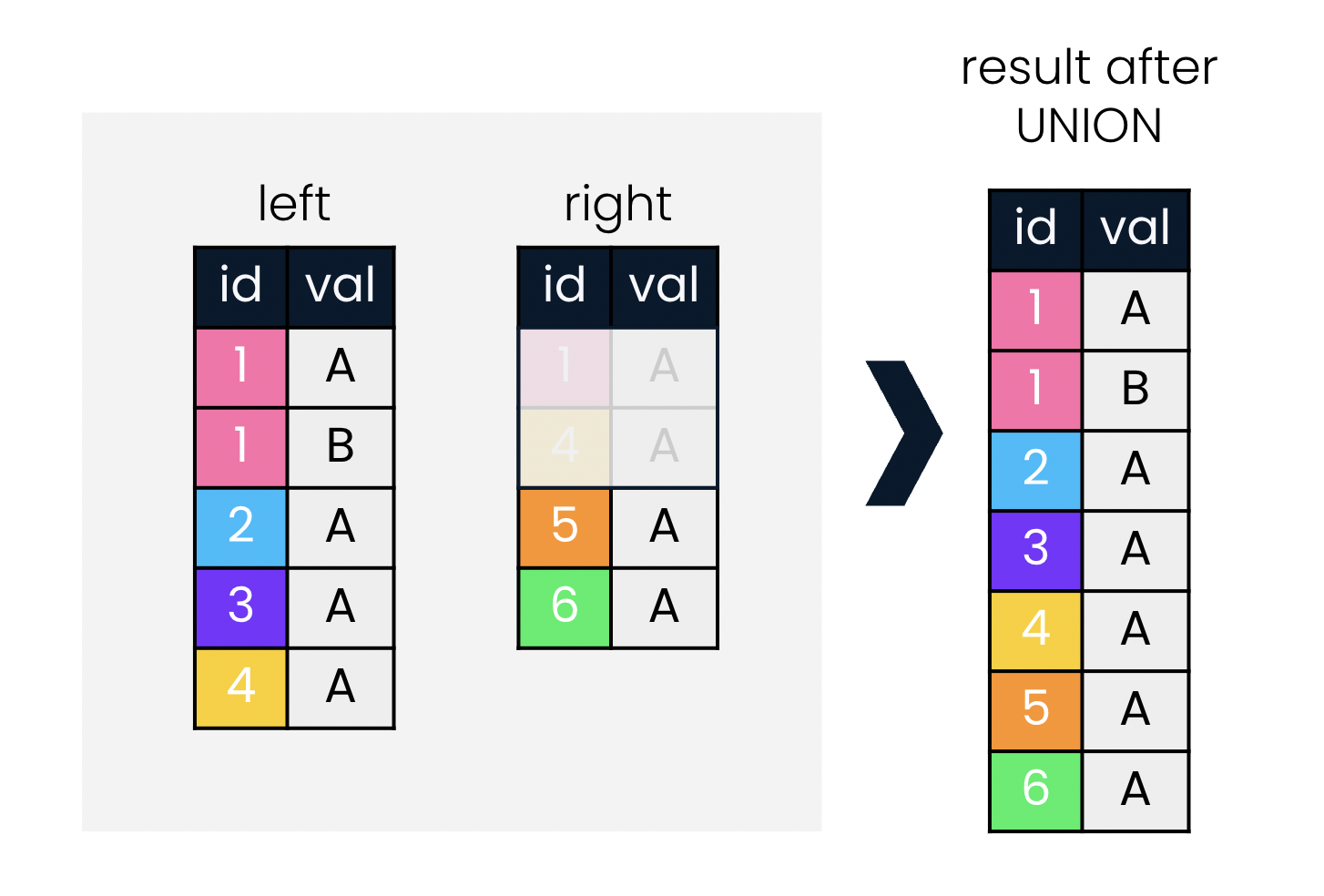

• UNION takes two tables as input, and returns all records from both tables, excluding duplicates

  SELECT *
  FROM left_table
  UNION
  SELECT *
  FROM right_table;

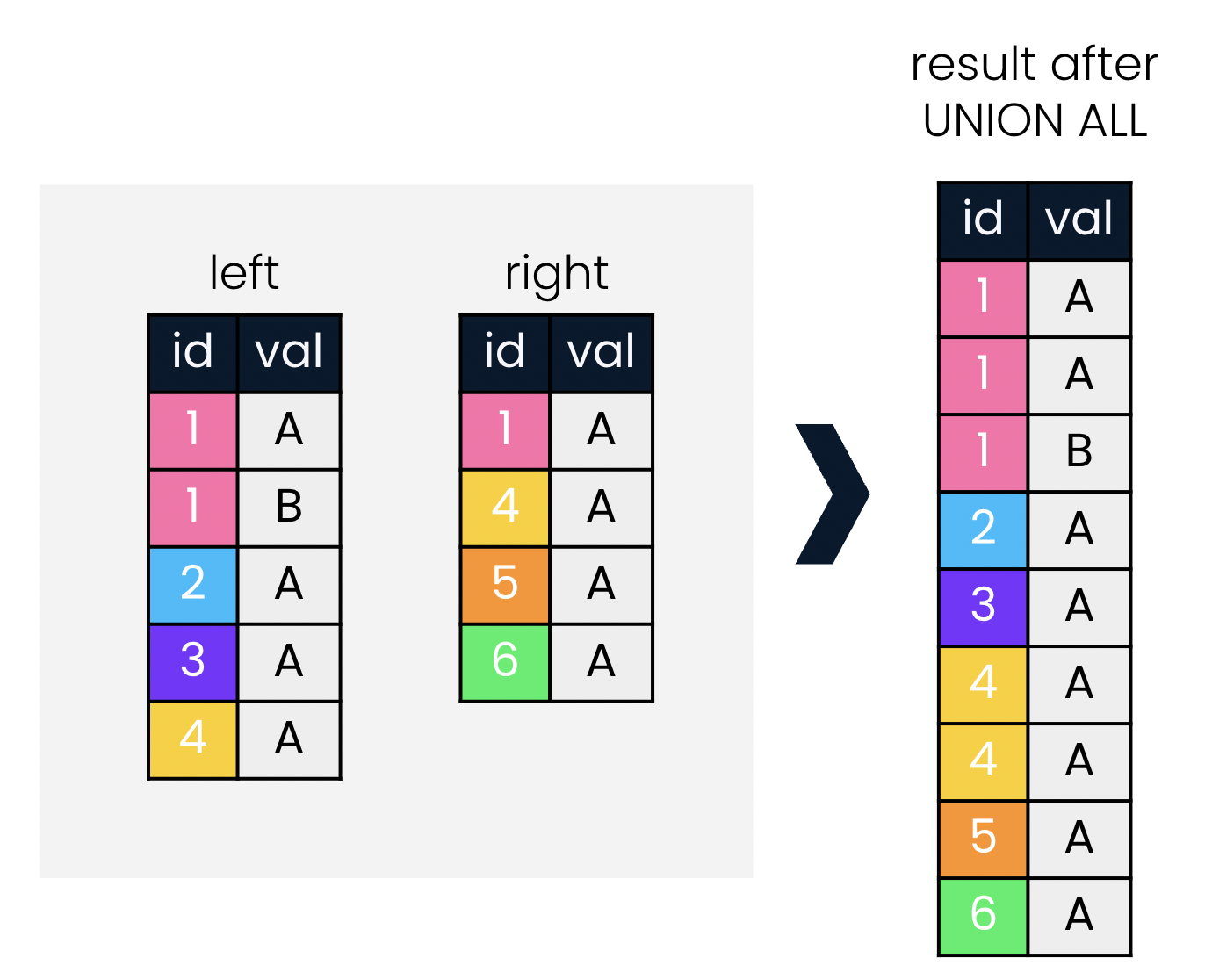

• UNION ALL takes two tables and returns all records from both tables, including duplicates

  SELECT *
  FROM left_table
  UNION ALL
  SELECT *
  FROM right_table;

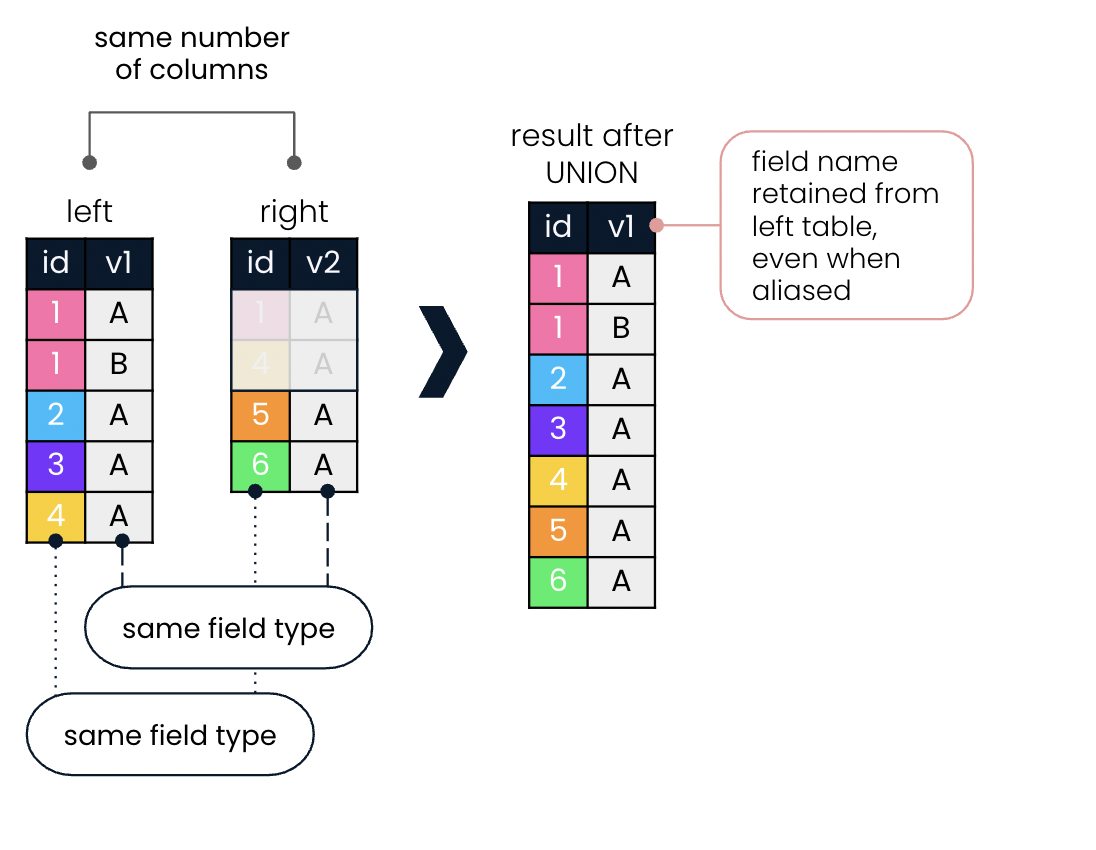

UNION and UNION ALL syntax

Both queries on the left and right of the set operation must have the same data types. The names of the fields do not need to be the same, as the result will always contain field names from the left query.

Two tables, languages and currencies:

SELECT code
FROM languages
UNION
SELECT curr_id
FROM currencies;

❌A SQL error, because languages and currencies do not have the same number of fields.

SELECT code
FROM languages
UNION
SELECT curr_id
FROM currencies;

❌A SQL error, because code and curr_id are not of the same data type.

SELECT code FROM
languages
UNION ALL
SELECT code FROM
currencies;

Table 25.28: Displaying records 1 - 10

code
AFG
AFG
AFG
AFG
ALB
ALB
ALB
ALB
DZA
DZA

⭕An unordered list of each country code in languages and currencies, including duplicates.

Comparing global economies

In this exercise, you have two tables, economies2015 and economies2019, available to you under the tabs in the console. You’ll perform a set operation to stack all records in these two tables on top of each other, excluding duplicates.

When drafting queries containing set operations, it is often helpful to write the queries on either side of the operation first, and then call the set operator.

-- Select all fields from economies2015
SELECT *
FROM economies2015
-- Set operation
UNION
-- Select all fields from economies2019
SELECT *
FROM economies2019
ORDER BY code, year;

Table 25.29: Displaying records 1 - 10

code	year	income_group	gross_savings
ABW	2015	High income	14.87
AGO	2015	Lower middle income	25.02
AGO	2019	Lower middle income	25.52
ALB	2015	Upper middle income	16.86
ALB	2019	Upper middle income	14.50
ARG	2015	Upper middle income	14.29
ARG	2019	Upper middle income	14.29
ARM	2015	Upper middle income	18.43
ARM	2019	Upper middle income	9.82
ATG	2015	High income	7.05

UNION can be helpful for consolidating data from multiple tables into one result, which as you have seen, can then be ordered in meaningful ways.

Comparing two set operations

In this exercise, you will looking at cases for when UNION is appropriate compared to UNION ALL.

You will be looking at combinations of country code and year from the economies and populations tables.

-- Query that determines all pairs of code and year from economies and populations, without duplicates
SELECT code, year
FROM economies
UNION
SELECT country_code, year
FROM populations
ORDER BY code, year;

Table 25.30: Displaying records 1 - 10

code	year
ABW	2010
ABW	2015
AFG	2010
AFG	2015
AGO	2010
AGO	2015
ALB	2010
ALB	2015
AND	2010
AND	2015

-- Amend the query to return all combinations (including duplicates)
SELECT code, year
FROM economies
-- Set theory clause
UNION ALL
SELECT country_code, year
FROM populations
ORDER BY code, year;

Table 25.31: Displaying records 1 - 10

code	year
ABW	2010
ABW	2015
AFG	2010
AFG	2010
AFG	2015
AFG	2015
AGO	2010
AGO	2010
AGO	2015
AGO	2015

UNION returned 434 records, whereas UNION ALL returned 814. Are you able to spot the duplicates in the UNION ALL?

25.3.2 INTERSECT

• INTERSECT is a robust set operation for finding the set of identical records between two sets of records.

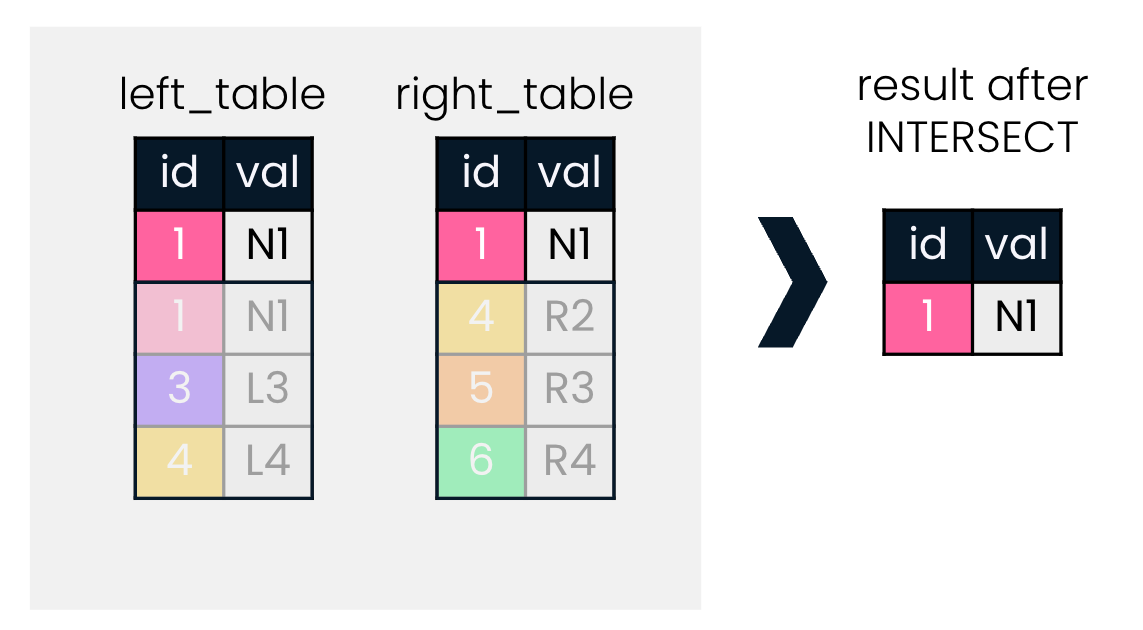

INTERSECT vs. INNER JOIN on two columns

INTERSECT	INNER JOIN
SELECT * FROM left_table INTERSECT SELECT * FROM right_table;	SELECT * FROM left_table INNER JOIN right_table ON left.id = right.id AND left.val = right.val
removes duplicates	return duplicates, if id is duplicated in either table
return NULL	never return NULL
A set-based operator that compares complete rows between two sets and can never return more rows than in the smaller table.	An operator that generally matches on a limited set of columns and can return zero rows or more rows from either table.

Let’s say you are interested in those countries that share names with cities. Return all city names that are also country names.

-- Return all cities with the same name as a country
SELECT name
FROM cities
INTERSECT
SELECT name
FROM countries;

Table 25.32: 1 records

name
Singapore

It looks as though Singapore is the only country in our database that has a city with the same name!

25.3.3 EXCEPT

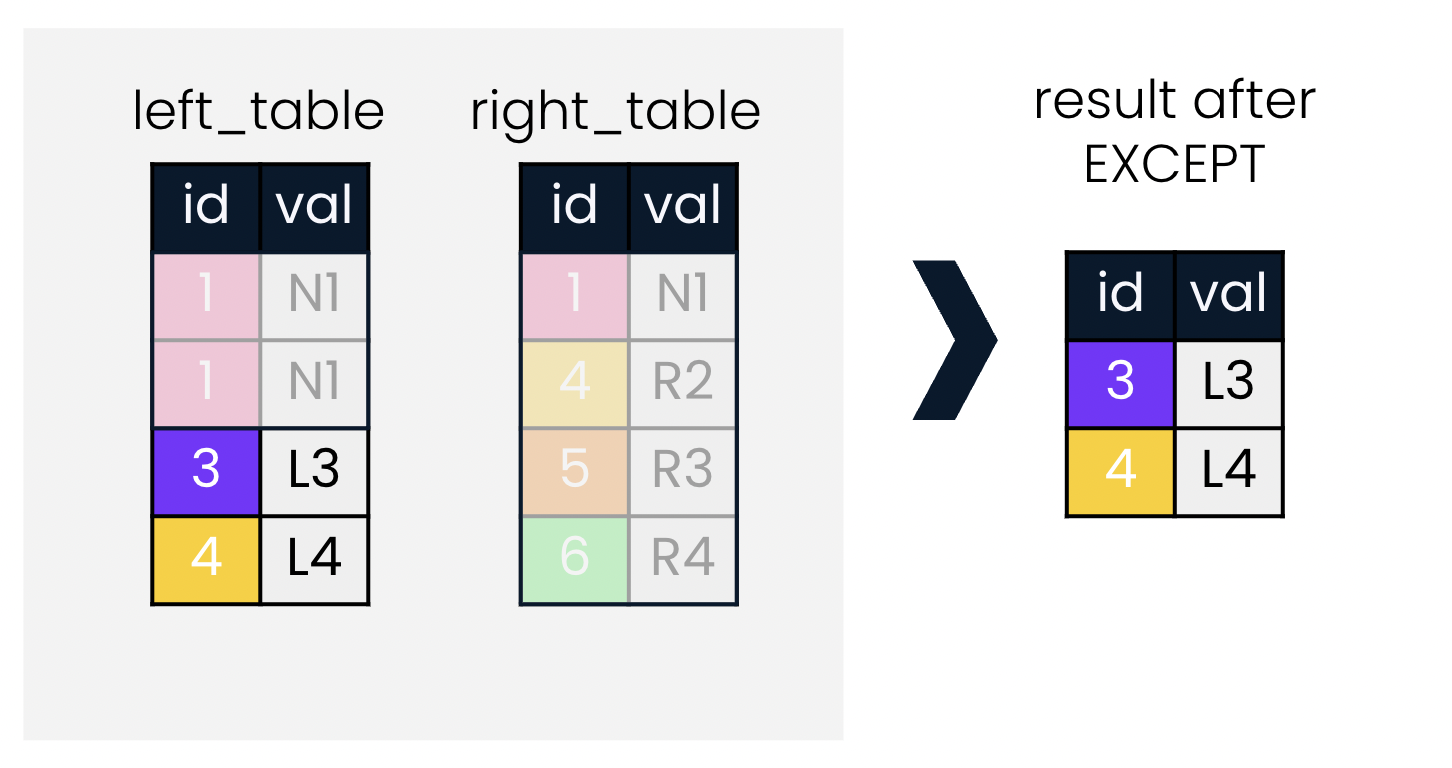

• EXCEPT retains only records from the left table that are not present in the right table



Find the names of cities that do not have the same names as their countries.

-- Return all cities that do not have the same name as a country
SELECT name
FROM cities
EXCEPT
SELECT name
FROM countries
ORDER BY name;

Table 25.33: Displaying records 1 - 10

name
Abidjan
Abu Dhabi
Abuja
Accra
Addis Ababa
Ahmedabad
Alexandria
Algiers
Almaty
Ankara

Note that if countries had been on the left and cities on the right, you would have returned the opposite: all countries that do not have the same name as a city.

SELECT name
FROM countries
EXCEPT
SELECT name
FROM cities
ORDER BY name;

Table 25.34: Displaying records 1 - 10

name
Afghanistan
Albania
Algeria
American Samoa
Andorra
Angola
Antigua and Barbuda
Argentina
Armenia
Aruba

Calling all set operators

25.4 Subqueries

25.4.1 With semi joins & anti joins

Additive joins

• The six joins we’ve worked with so far are all “additive” in that they add columns to the original “left” table.

  1. INNER JOIN

  2. LEFT JOIN

  3. RIGHT JOIN

  4. FULL JOIN

  5. CROSS JOIN

  6. Self joins

None additive joins

Semi join	Anti join
Chooses records in the first table where a condition is met in the second table.	Chooses records in the first table where a condition is NOT met in the second table.
SELECT president, country, continent FROM presidents WHERE country IN 👈 (SELECT country FROM states WHERE indep_year < 1800);	SELECT country, president FROM presidents WHERE continent LIKE '%America' AND country NOT IN 👈 (SELECT country FROM states WHERE indep_year < 1800);

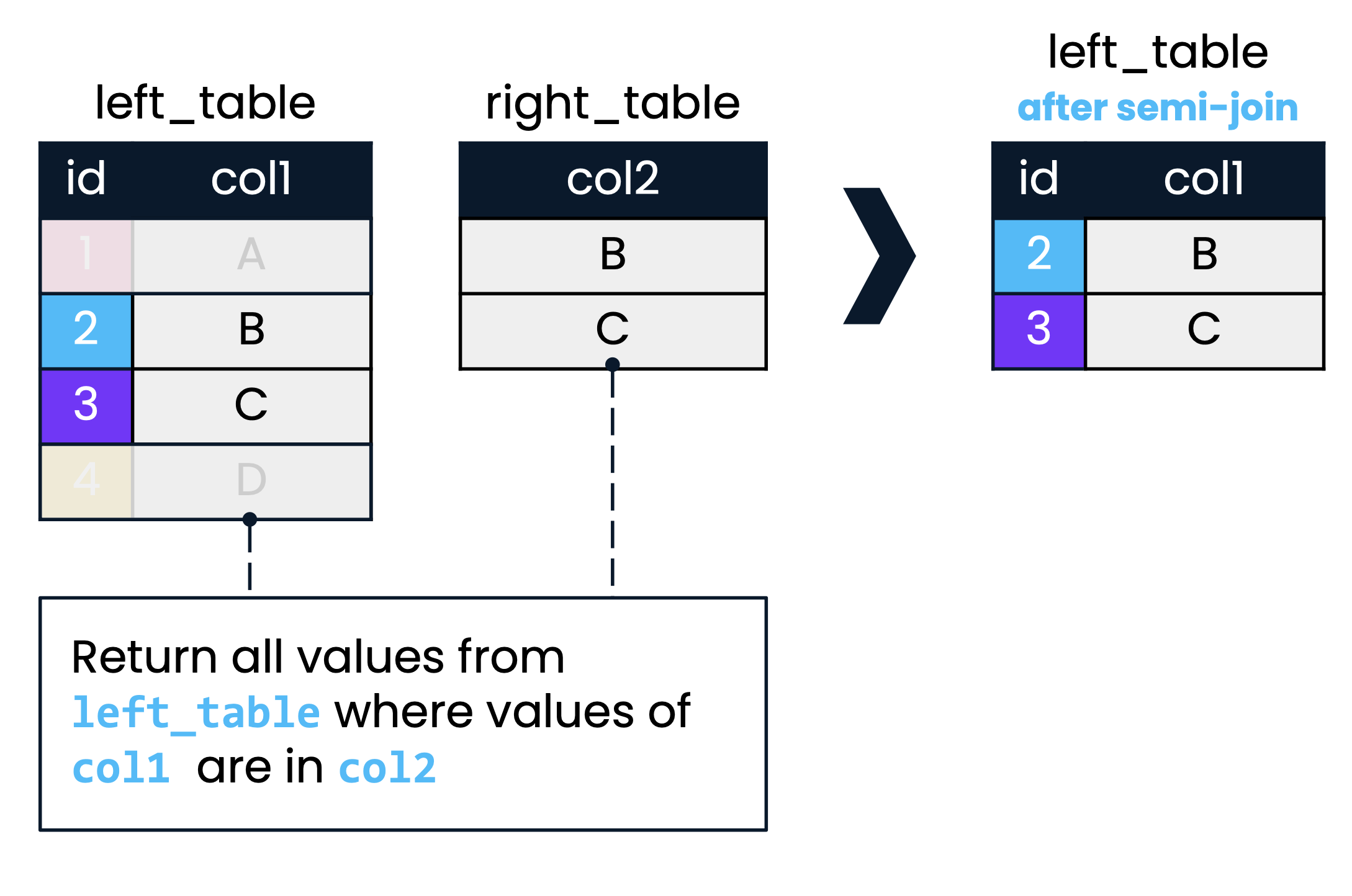

25.4.1.1 Semi join

Let’s say you are interested in identifying languages spoken in the Middle East. The languages table contains information about languages and countries, but it does not tell you what region the countries belong to. You can build up a semi join by filtering the countries table by a particular region, and then using this to further filter the languages table.

-- Select country code for countries in the Middle East
SELECT code
FROM countries
WHERE region = 'Middle East';

Table 25.35: Displaying records 1 - 10

code
ARE
ARM
AZE
BHR
GEO
IRQ
ISR
YEM
JOR
KWT

-- Select unique language names
SELECT DISTINCT name
FROM languages
-- Order by the name of the language
ORDER BY name;

Table 25.36: Displaying records 1 - 10

name
Afar
Afrikaans
Akyem
Albanian
Alsatian
Amerindian
Amharic
Angolar
Antiguan creole
Arabic

Create a semi join out of the two queries you’ve written, which filters unique languages returned in the first query for only those languages spoken in the 'Middle East'.

SELECT DISTINCT name
FROM languages
-- Add syntax to use bracketed subquery below as a filter
WHERE code IN
    (SELECT code
    FROM countries
    WHERE region = 'Middle East')
ORDER BY name;

Table 25.37: Displaying records 1 - 10

name
Arabic
Aramaic
Armenian
Azerbaijani
Azeri
Baluchi
Bulgarian
Circassian
English
Farsi

25.4.1.2 Anti join

The anti join is a related and powerful joining tool. It can be particularly useful for identifying whether an incorrect number of records appears in a join.

Say you are interested in identifying currencies of Oceanian countries.

You have written the following INNER JOIN, which returns 15 records.

SELECT c1.code, name, basic_unit AS currency
FROM countries AS c1
INNER JOIN currencies AS c2
ON c1.code = c2.code
WHERE c1.continent = 'Oceania';

Table 25.38: Displaying records 1 - 10

code	name	currency
AUS	Australia	Australian dollar
KIR	Kiribati	Australian dollar
MHL	Marshall Islands	United States dollar
NRU	Nauru	Australian dollar
PLW	Palau	United States dollar
PNG	Papua New Guinea	Papua New Guinean kina
PYF	French Polynesia	CFP franc
SLB	Solomon Islands	Solomon Islands dollar
WSM	Samoa	Samoan tala
TON	Tonga	Tongan paʻanga

1. Now, you want to ensure that all Oceanian countries from the countries table are included in this result.

-- Select code and name of countries from Oceania
SELECT code, name
FROM countries
WHERE continent = 'Oceania';

Table 25.39: Displaying records 1 - 10

code	name
ASM	American Samoa
AUS	Australia
FJI	Fiji Islands
GUM	Guam
KIR	Kiribati
MHL	Marshall Islands
FSM	Micronesia, Federated States of
NRU	Nauru
PLW	Palau
PNG	Papua New Guinea

There’re 19 records.

2. If there are any Oceanian countries excluded in this INNER JOIN, you want to return the names of these countries.

SELECT code, name
FROM countries
WHERE continent = 'Oceania'
-- Filter for countries not included in the bracketed subquery
  AND code NOT IN
    (SELECT code
    FROM currencies);

Table 25.40: 5 records

code	name
ASM	American Samoa
FJI	Fiji Islands
GUM	Guam
FSM	Micronesia, Federated States of
MNP	Northern Mariana Islands

Anti join determined which five out of 19 countries that were not included in the INNER JOIN provided.

25.4.2 Inside WHERE & SELECT

Syntax for subqueries inside WHERE

• All semi joins and anti joins we have seen included a subequery in WHERE

• WHERE is the most common place for subqueries

  -- example
  SELECT *
  FROM some_table
  WHERE some_field IN
      (SELECT some_numeric_field
       FROM another_table
       WHERE field2 = some_condition);

Subqueries inside SELECT

-- example
SELECT DISTINCT continent,
    (SELECT COUNT(*)
     FROM monarchs
     WHERE states.continent = monarch.continent) AS monarch_count
FROM states;

25.4.2.1 Subquery inside WHERE

In this exercise, you will nest a subquery from the populations table inside another query from the same table, populations.

Your goal is to figure out which countries had high average life expectancies in 2015. Suppose you only want records from 2015 with life_expectancy above 1.15 * avg_life_expectancy.

SELECT *
FROM populations
WHERE life_expectancy > 1.15 * avg_life_expectancy
  AND year = 2015;

1. Write a query to calculate a value for avg_life_expectancy.

-- Select average life_expectancy from the populations table
SELECT AVG(life_expectancy)
FROM populations
-- Filter for the year 2015
WHERE year = 2015;

Table 25.41: 1 records

AVG(life_expectancy)
71.7

2. Nest this calculation into another query.

SELECT *
FROM populations
-- Filter for only those populations where life expectancy is 1.15 times higher than average
WHERE life_expectancy > 1.15 *
  (SELECT AVG(life_expectancy)
   FROM populations
   WHERE year = 2015)
    AND year = 2015;

Table 25.42: Displaying records 1 - 10

pop_id	country_code	year	fertility_rate	life_expectancy	size
21	AUS	2015	1.83	82.5	23789752
376	CHE	2015	1.54	83.2	8281430
356	ESP	2015	1.32	83.4	46443994
134	FRA	2015	2.01	82.7	66538391
170	HKG	2015	1.20	84.3	7305700
174	ISL	2015	1.93	82.9	330815
190	ITA	2015	1.37	83.5	60730582
194	JPN	2015	1.46	83.8	126958472
340	SGP	2015	1.24	82.6	5535002
374	SWE	2015	1.88	82.6	9799186

Many of these country codes as being relatively wealthy countries, which makes sense as we might expect life expectancy to be higher in wealthier nations.

WHERE do people live?

Identifying capital cities in order of largest to smallest population. Get the urban area population for capital cities only.

-- Select relevant fields from cities table
SELECT name, country_code, urbanarea_pop
FROM cities
-- Filter using a subquery on the countries table
WHERE name IN
    (SELECT capital FROM countries)
ORDER BY urbanarea_pop DESC;

Table 25.43: Displaying records 1 - 10

name	country_code	urbanarea_pop
Beijing	CHN	21516000
Dhaka	BGD	14543124
Tokyo	JPN	13513734
Moscow	RUS	12197596
Cairo	EGY	10230350
Kinshasa	COD	10130000
Jakarta	IDN	10075310
Seoul	KOR	9995784
Mexico City	MEX	8974724
Lima	PER	8852000

25.4.2.2 Subquery inside SELECT

1. Begin with a LEFT JOIN combined with a GROUP BY to select the nine countries with the most cities appearing in the cities table, along with the counts of these cities.

-- Find top nine countries with the most cities
SELECT countries.name AS country, COUNT(cities.name) AS cities_num
FROM countries
LEFT JOIN cities
ON countries.code = cities.country_code
GROUP BY countries.name
-- Order by count of cities as cities_num
ORDER BY cities_num DESC, country ASC
LIMIT 9;

Table 25.44: 9 records

country	cities_num
China	36
India	18
Japan	11
Brazil	10
Pakistan	9
United States	9
Indonesia	7
Russian Federation	7
South Korea	7

2. Write a query that returns the same result as the join, but leveraging a nested query instead.

SELECT countries.name AS country,
-- Subquery that provides the count of cities
  (SELECT COUNT(*)
   FROM cities
   WHERE cities.country_code = countries.code) AS cities_num
FROM countries
ORDER BY cities_num DESC, country
LIMIT 9;

Table 25.45: 9 records

country	cities_num
China	36
India	18
Japan	11
Brazil	10
Pakistan	9
United States	9
Indonesia	7
Russian Federation	7
South Korea	7

Notice how the subquery involves only one additional step in your SELECT statement, whereas the JOIN and GROUP BY are a two-step process.

25.4.3 Inside FROM

• Include a subquery as a temporary table in FROM clause and then SELECT from it.

25.4.3.1 Subquery inside FROM

Subqueries inside FROM can help select columns from multiple tables in a single query.

Say you are interested in determining the number of languages spoken for each country. You want to present this information alongside each country’s local_name, which is a field only present in the countries table and not in the languages table. Use a subquery inside FROM to bring information from these two tables together.

-- Select code, and language count as lang_num = sub
SELECT code, COUNT(name) AS lang_num
FROM languages
GROUP BY code;

Table 25.46: Displaying records 1 - 10

code	lang_num
ABW	7
AFG	4
AGO	12
AIA	1
ALB	4
AND	4
ARE	5
ARG	6
ARM	3
ASM	5

-- Select local_name and lang_num from appropriate tables
SELECT countries.local_name, sub.lang_num
FROM countries,
  (SELECT code, COUNT(*) AS lang_num
  FROM languages
  GROUP BY code) AS sub
-- Where codes match, only present in the countries and not in the languages
WHERE countries.code = sub.code
ORDER BY lang_num DESC;

Table 25.47: Displaying records 1 - 10

local_name	lang_num
Zambia	19
YeItyop´iya	16
Zimbabwe	16
Bharat/India	14
Nepal	14
South Africa	13
Mali	13
France	13
Angola	12
Malawi	12

25.4.3.2 Subquery challenge

Suppose you’re interested in analyzing inflation and unemployment rate for certain countries in 2015. You are not interested in countries with "Republic" or "Monarchy" as their form of government, but are interested in all other forms of government, such as emirate federations, socialist states, and commonwealths.

You will use the field gov_form to filter for these two conditions, which represents a country’s form of government.

-- Select relevant fields
SELECT code, inflation_rate, unemployment_rate
FROM economies
WHERE year = 2015
-- Anti join
  AND code NOT IN
-- Subquery returning country codes filtered on gov_form
    (SELECT code
     FROM countries
-- Filter which do not contain the words "Republic" or "Monarchy" in gov_form.
     WHERE gov_form LIKE '%Republic%'
         OR gov_form LIKE '%Monarchy%')
ORDER BY inflation_rate DESC;

Table 25.48: Displaying records 1 - 10

code	inflation_rate	unemployment_rate
SSD	52.813	NA
LBY	9.839	NA
MAC	4.564	1.82
ARE	4.070	NA
HKG	3.037	3.30
SRB	1.392	18.20
MNE	1.204	NA
TLS	0.553	NA
ROU	-0.596	6.81
PRI	-0.751	12.00

In 2015, South Sudan (with country code SSD) had inflation above 50%!

25.4.3.3 Final challenge

Your task is to determine the top 10 capital cities in Europe and the Americas by city_perc, a metric you’ll calculate. city_perc is a percentage that calculates the “proper” population in a city as a percentage of the total population in the wider metro area, as follows:

city_proper_pop / metroarea_pop * 100

Do not use table aliasing in this exercise.

-- Select fields from cities
SELECT
    name, country_code, city_proper_pop, metroarea_pop,
    -- avoid integer dived by integer return integer, so multiple 1.0
    ((city_proper_pop * 1.0) / (metroarea_pop * 1.0) * 100) AS city_perc
FROM cities
-- Use subquery to filter city name, capital cities in Europe and Americas
WHERE name IN
    (SELECT capital
     FROM countries
     WHERE continent LIKE 'Europe'
        OR continent LIKE '%America') -- with 'America' at the end of name
-- Add filter condition such that metroarea_pop does not have null values
    AND (metroarea_pop IS NOT NULL)
-- Sort and limit the result
ORDER BY city_perc DESC
LIMIT 10;

Table 25.49: Displaying records 1 - 10

name	country_code	city_proper_pop	metroarea_pop	city_perc
Lima	PER	8852000	10750000	82.3
Bogota	COL	7878783	9800000	80.4
Moscow	RUS	12197596	16170000	75.4
Vienna	AUT	1863881	2600000	71.7
Montevideo	URY	1305082	1947604	67.0
Caracas	VEN	1943901	2923959	66.5
Rome	ITA	2877215	4353775	66.1
Brasilia	BRA	2556149	3919864	65.2
London	GBR	8673713	13879757	62.5
Budapest	HUN	1759407	2927944	60.1

Lima has the highest percentage of people living in the city ‘proper’, relative to the wider metropolitan population.

# disconnect the sql connection
dbDisconnect(con)
